Description

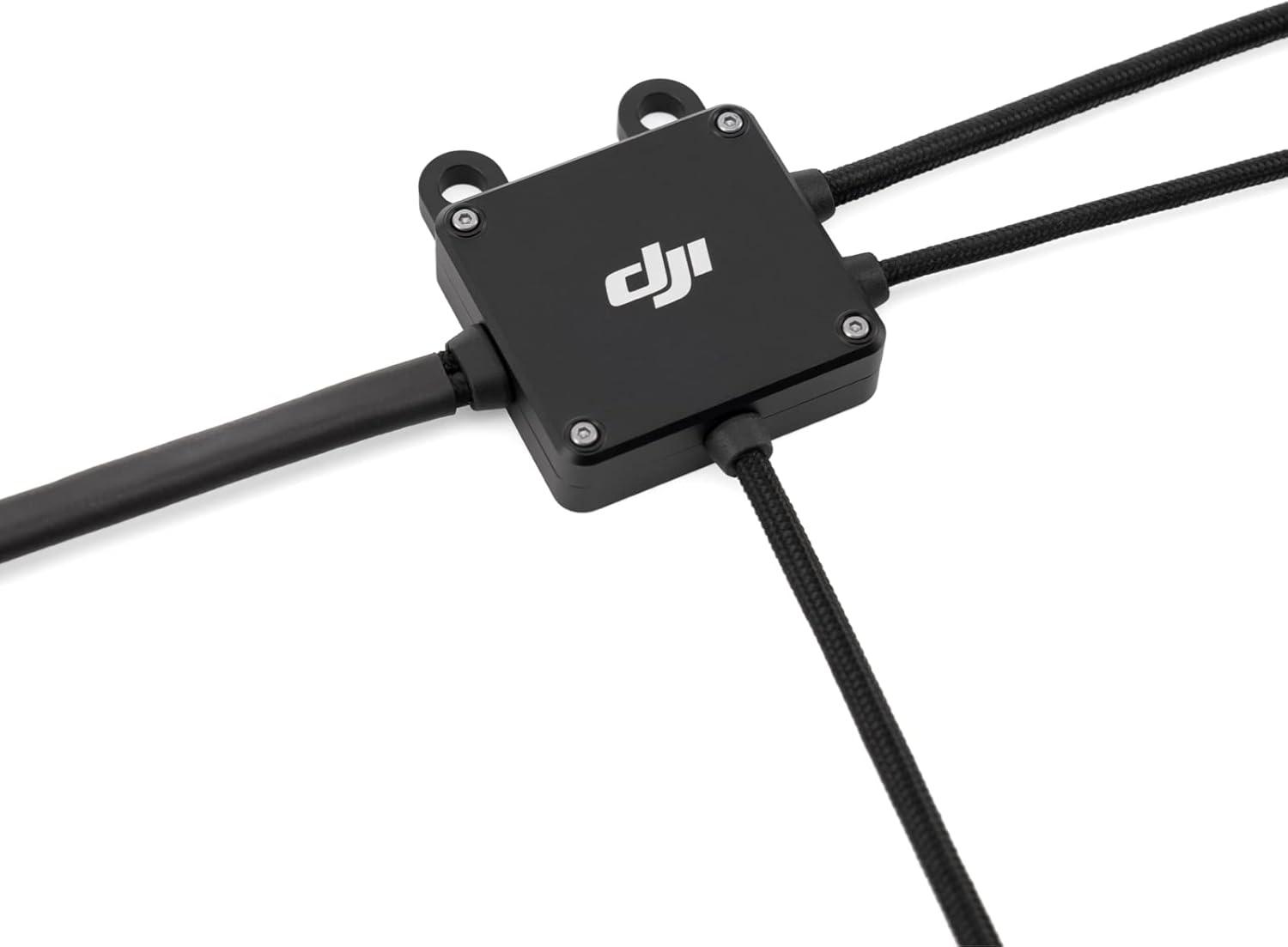

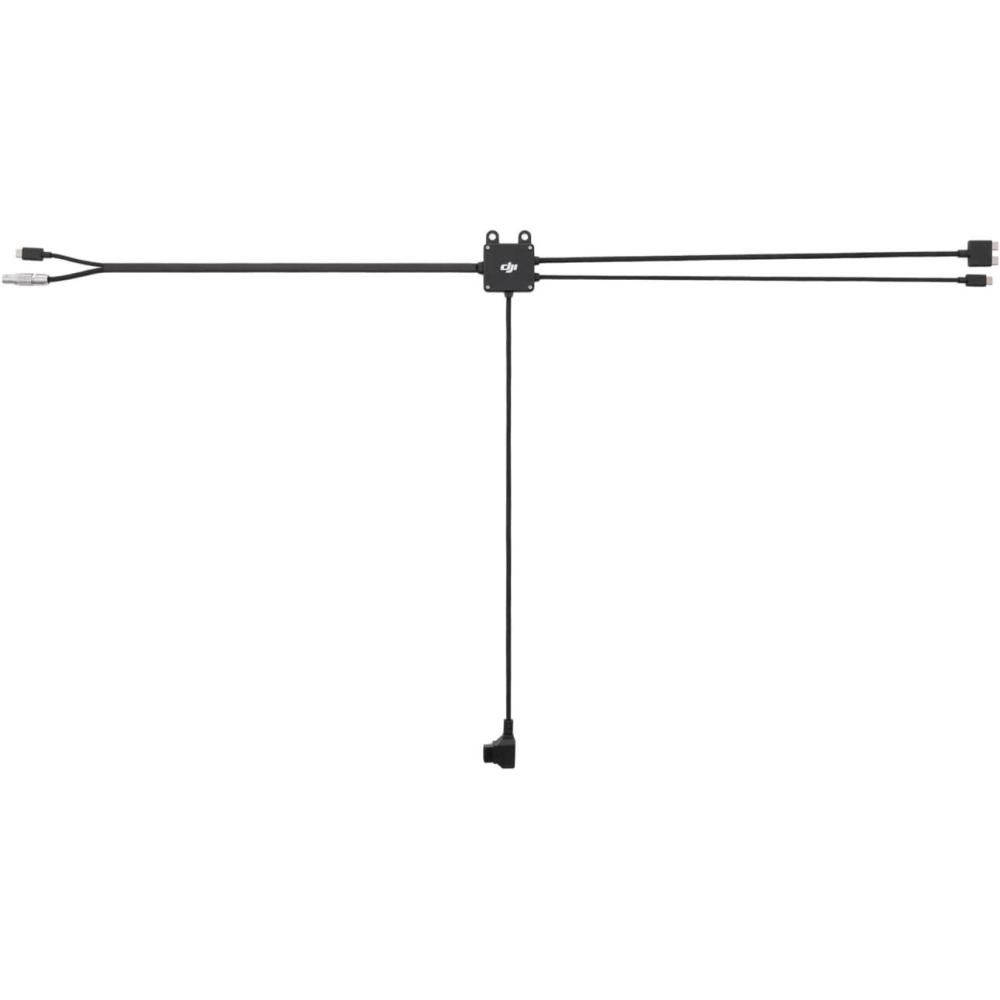

The DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub incorporates four cables that respectively connect to the DJI LiDAR Range Finder (RS), DJI Video Transmitter, DJI RS Focus Motor (2022), and a power supply.
Compatibility: DJI RS 4 Pro, DJI RS 3 Pro, DJI Transmission

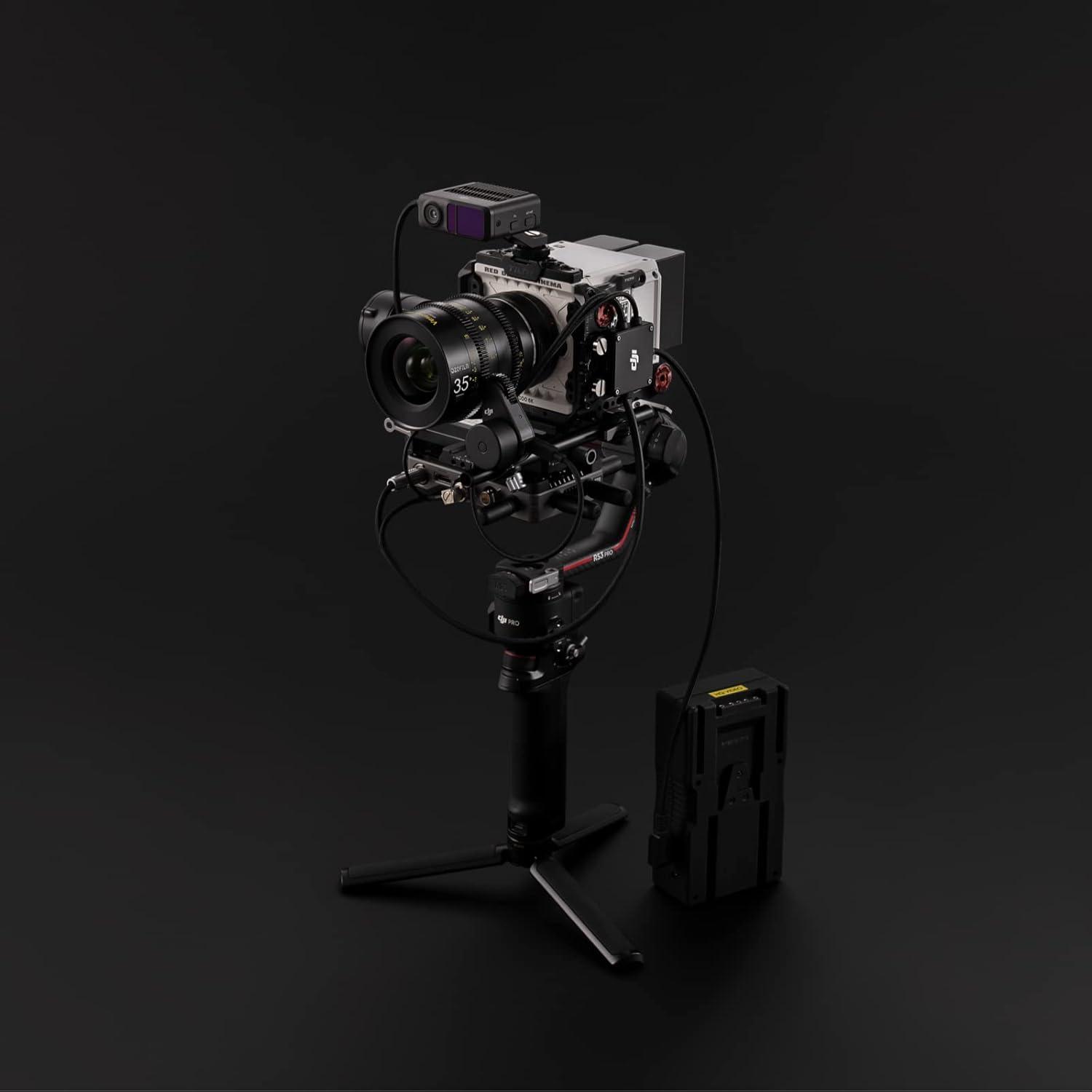

By connecting the DJI LiDAR Range Finder (RS) with the DJI Video Transmitter and other accessories, you can get a complete focusing and monitoring system for any combination of camera and manual lens, and achieve lens calibration and autofocus with a manual lens.
By connecting the USB-C Communication Port of the cable hub with DJI RS 3 Pro/DJI RS 4 Pro via the DJI RS Multi-Camera Control Cable (USB-C), you can build inter-connection among DJI RS 3 Pro/DJI RS 4 Pro, DJI Transmission, and the LiDAR Range Finder (RS) for stabilization, remote monitoring and control, and autofocus.
Tips: Please use 12-17 V external power for power supply.
Product Description
Cable and Port Type:

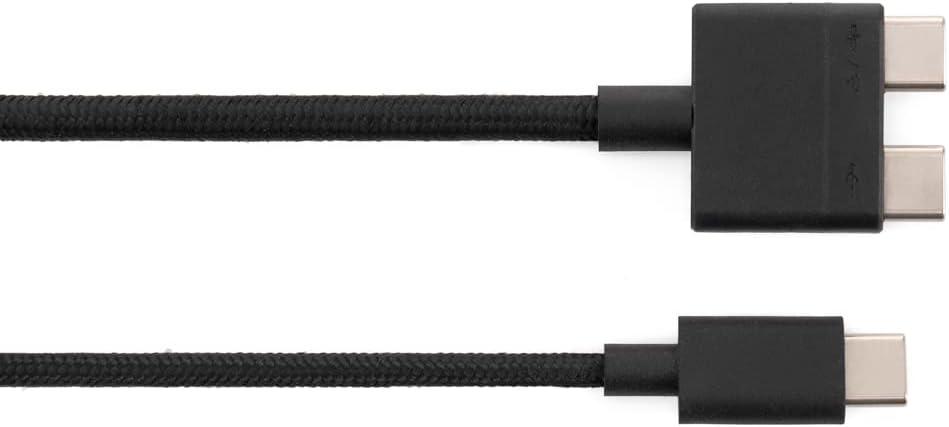

Dual USB-C LiDAR Connection Cable (40 cm)
USB-C Focus Motor Connection Cable (40 cm)

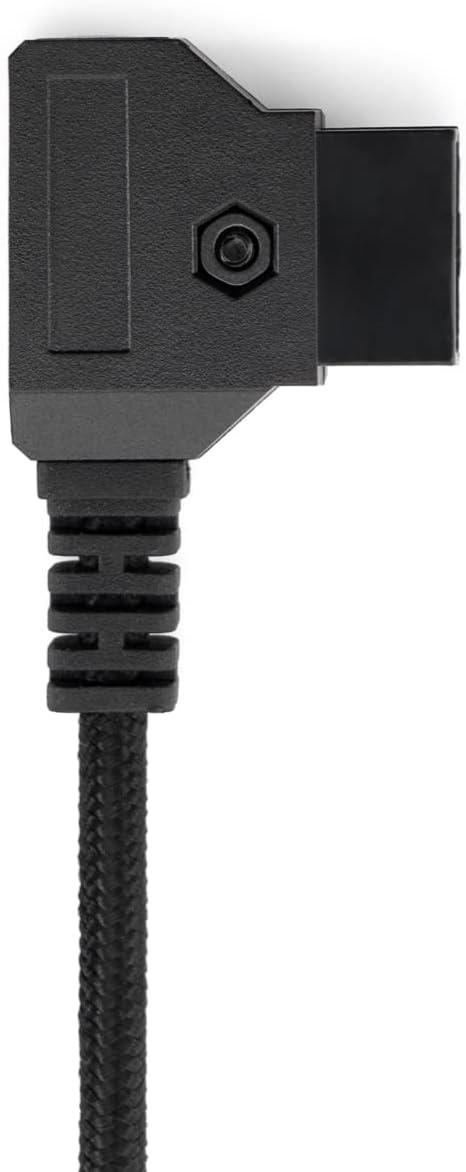

P-Tap Power Cable (40 cm)

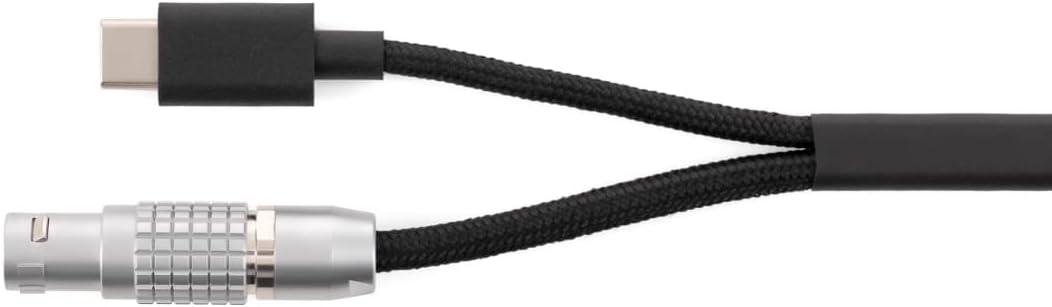

DC-OUT and USB-C Splitter Cable (40 cm)
USB-C Communication Port
Operating Voltage:
12 to 17 V
Set Contains:

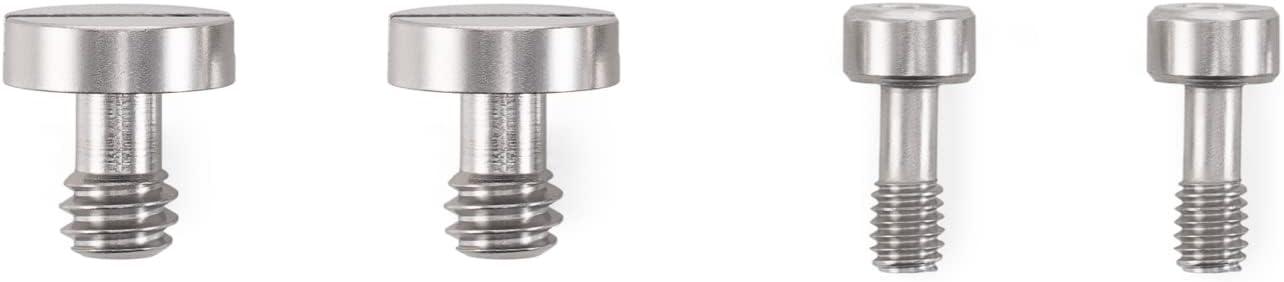

DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub × 1, Screw 1/4-20 × 2, M4 Screw (10 mm) × 2
