Description
The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.
Torque three times stronger and noise reduced by 50%. Quick-release structure delivers a smoother and more reliable focusing experience.

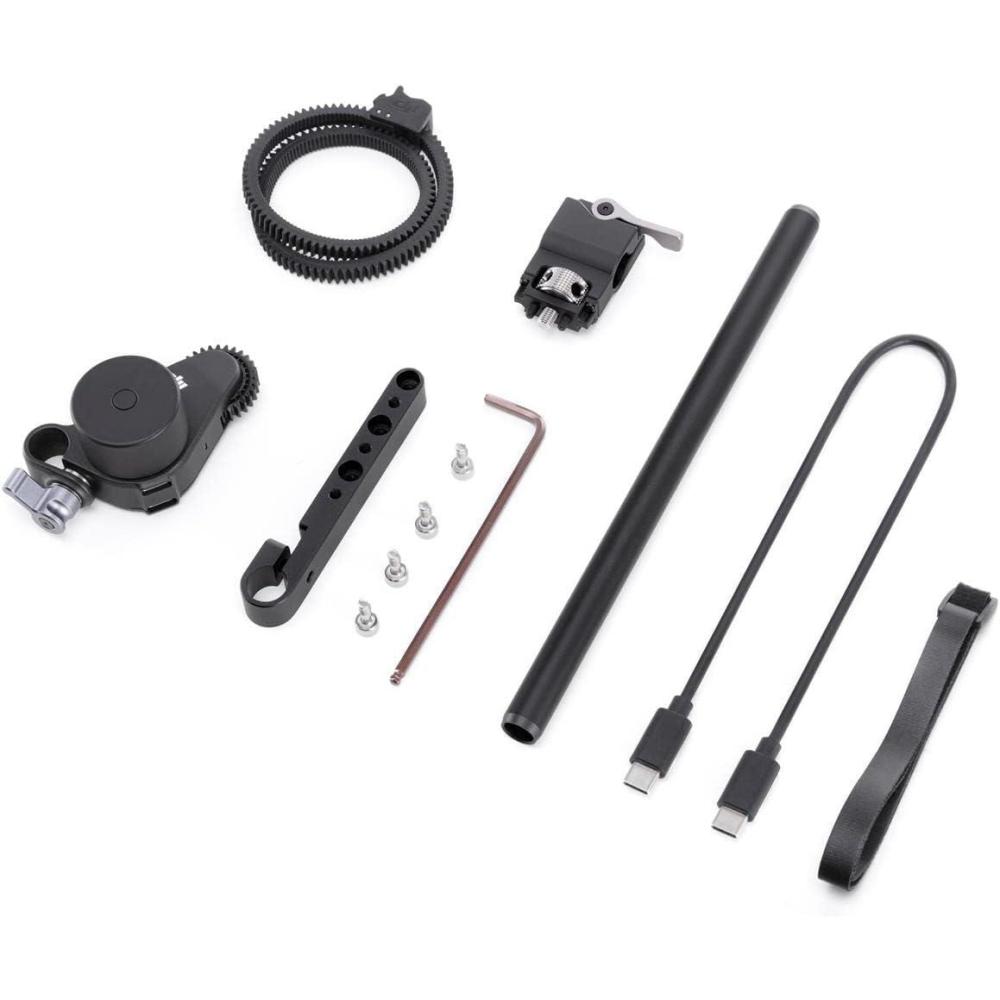

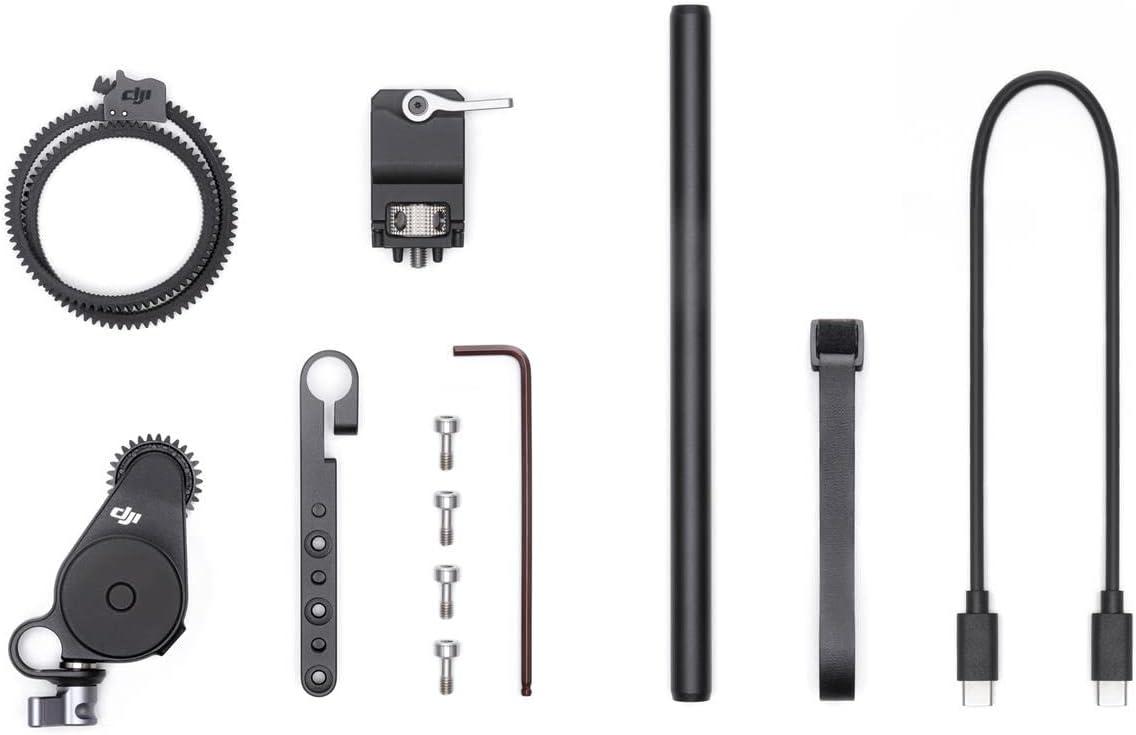

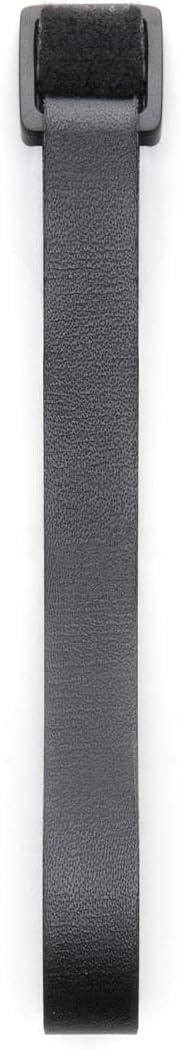

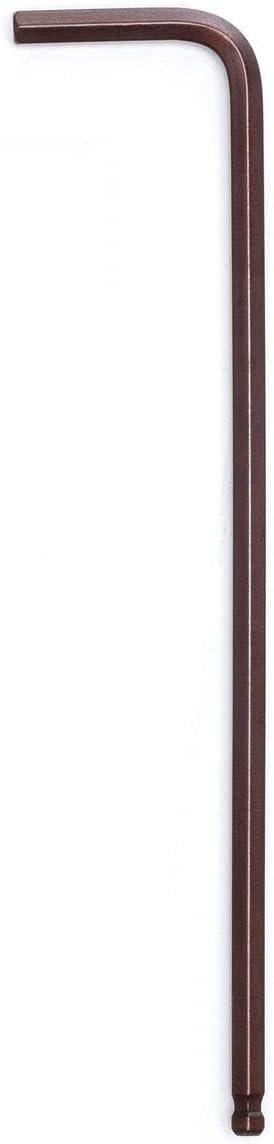

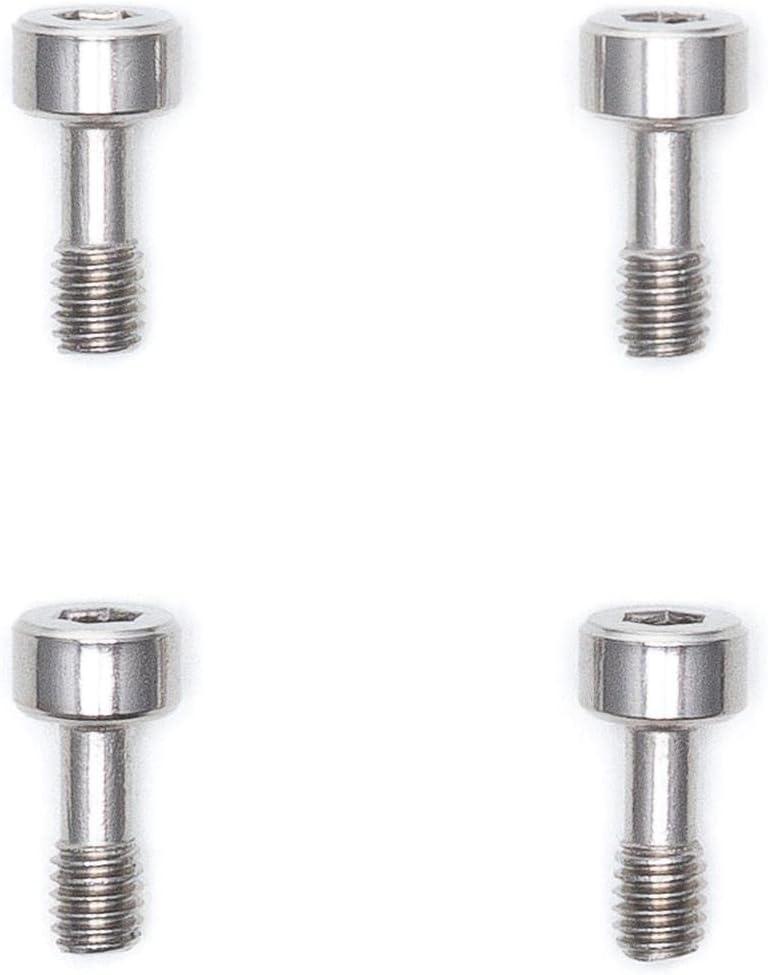

In the Box – Focus Motor (2022) × 1, Focus Motor Rod Mount Kit Combo × 1, Focus Gear Strip × 1, Multi-Camera Control Cable (USB-C, 30 cm) × 1, M4 Screw (10 mm) × 4, Allen Wrench (3 mm) × 1, Lens-Fastening Strap × 1
Compatibility – DJI RS 3 Pro, DJI RS 3, DJI RS 2, DJI RSC 2, DJI Ronin 4D Flex
Specifications
Structure:
Weight: 108 g
Dimensions: 80×50×36 mm (L×W×H)
Rod: 12 mm
Specifications:
Max Torque: 1.0 N·m (8 V)
Max Speed: 180 rpm (8 V)
Electrical Properties:
Free Current: 50 mA (5 V)
Stall Current: 2.8 A (8 V)
Operating Voltage: 6 to 17.6 V
Noise:
45 dB
Gear:
Number of Teeth: 30
Module: 0.8
Operating Temperature:
-20° to 45° C (-4° to 113° F)
